Aluminum Ground Mounting Structure

Aluminum Ground Mounting Structure

Aluminum Ground Mounting Structure is specially designed for large scale ground solar projects, main structure can work with concrete bases or ground screws depending on different soil condition.

  • Item No.:

    FA-GM-01

  • Product origin:

    fujian.china

  • Color:

    As your demand

  • Shipping port:

    Jiangyin Port

  • Lead Time:

    15DAYS

  • Brand:

    FOEN

Product Categories

how can we help you
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Contact Us

New Products

  • Product Details

Details & Benefits
Aluminum Ground Mounting Structure

Aluminum Ground Mounting Structure is specially designed for large scale ground solar projects, main structure can work with concrete bases or ground screws depending on different soil condition.



aluminum solar mounting structures



Material
    AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~60°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  10years quality warranty, 25years life span warranty

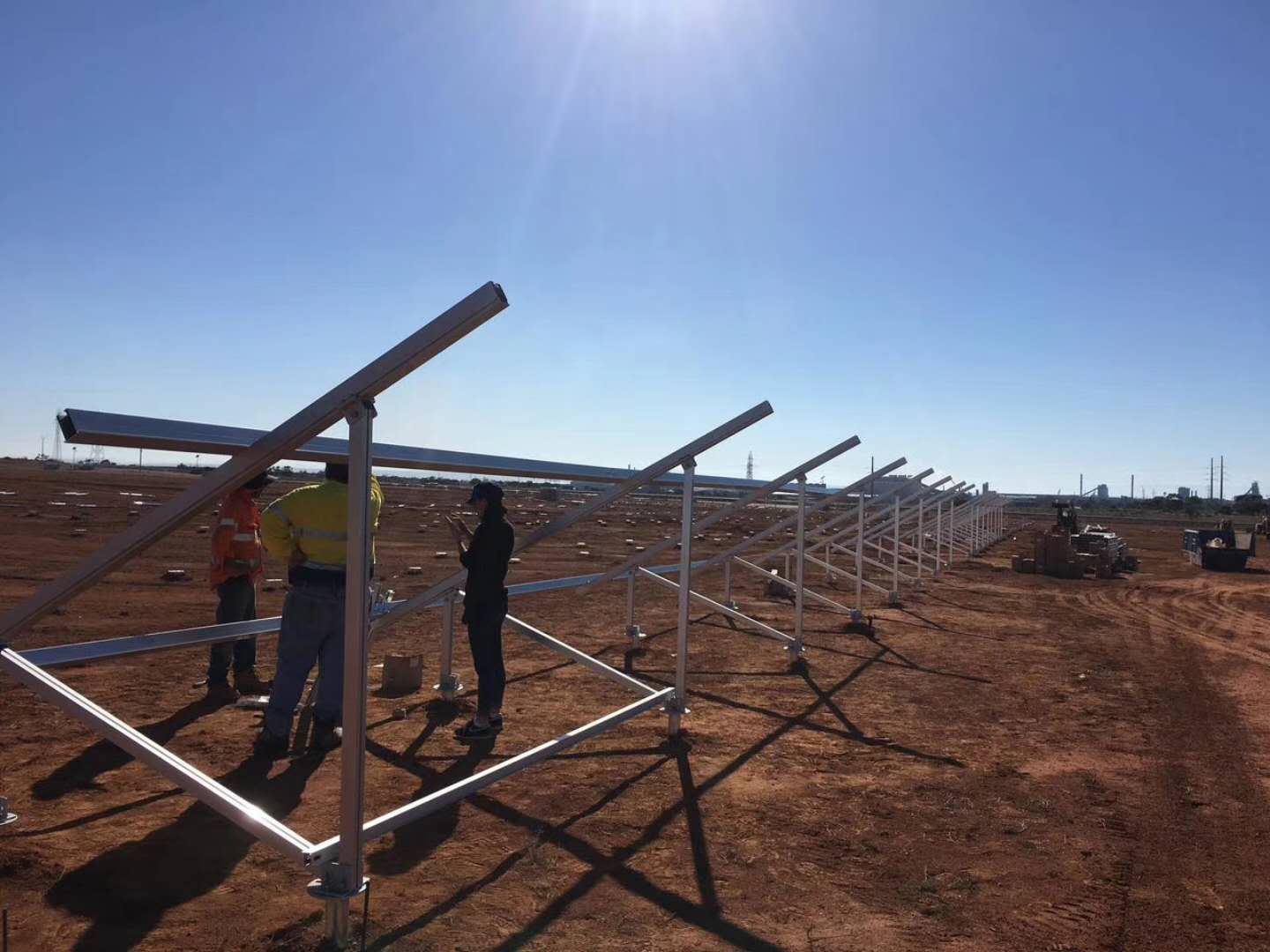

solar plant structure design


System Overview


concrete base solar bracket






Highly pre-assembled before shipment, save your onsite labor cost



Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain





how to put solar mounting system to work
