Ground Screw Mounting Structure

FOENAN Ground Screw Mounting Structure can work with concrete base or ground screw depending on different soil condition.

Item No.:
FA-GM-01
Product origin:
Fujian,China
Color:
As your demand
Shipping port:
Jiangyin Port
Lead Time:
15 days
Brand:
FOEN

Contact now

Product Categories

how can we help you

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

New Products

Product Details

Ground Screw Mounting Structure

Ground Screw Mounting Structure can work with concrete base or ground screw depending on different soil condition.

Technical Data

Material	AL 6005-T5/SUS304/Q235B
Surface Treatment	AverageAnodizing Coating Thickness≥12μmAverage Hot-galvanized Coating Thickness≥ 65μm
Panel Type	Framed & Frameless
Wind Load	≤60m/s
SnowLoad	1.4KN/m2
Panel Orientation	Landscape/Portrait
Tilt Angle	0°~60°
Seismic Load	Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
Standards	JIS C 8955 : 2017 AS/NZS 1170 DIN1055 ASCE/SEI 7-05 International Building Code: IBC 2009
Warranty	15years qualitywarranty, 25years life span warranty

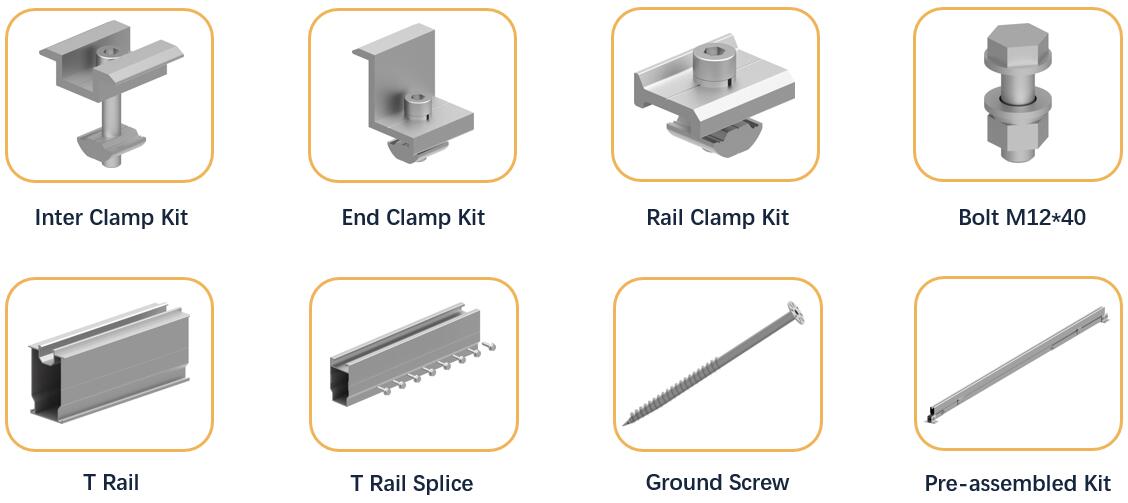

Component List

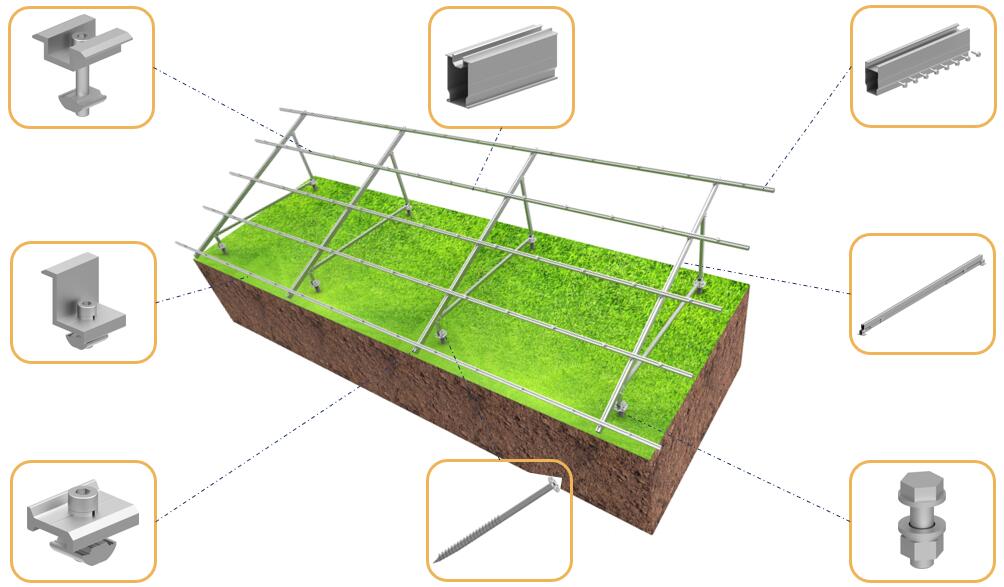

System Overview

Advantages

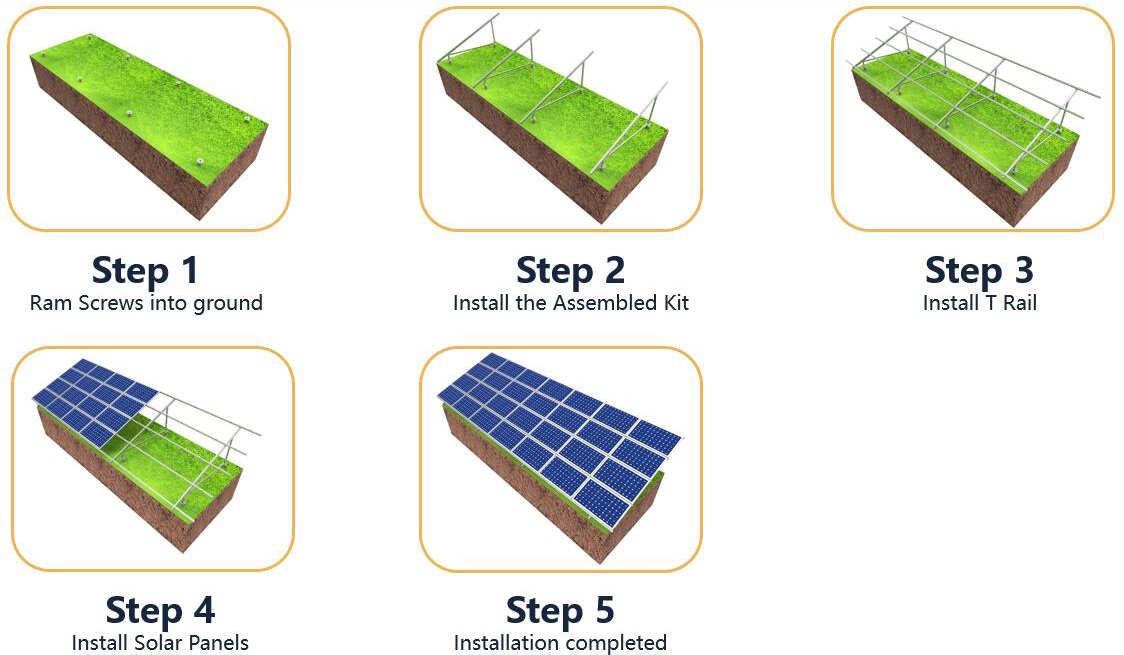

1.Quick Installation: Highly pre-assembled before shipment, save your onsite labor cost

2.Adjustable Structure: Can be adjusted in both landscape and portrait direction, making the system being compatible in certain rugged terrain

3.15 Years Warranty: 15 years' warranty, 25 years' life span
