Metal Roof Mounting System

Metal Roof Mounting System brings installers a more economical solution with quicker installation and safer structure.

Item No.:
FA-MR-01
Product origin:
Fujian,China
Color:
As your demand
Shipping port:
Jiangyin Port
Lead Time:
15 days
Brand:
FOEN

Contact now

Product Categories

how can we help you

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

New Products

Product Details

Metal Roof Mounting System

Metal Roof Mounting System is specially developed for both residential and commercial rooftop solar installations; With patented hooks and customzied solution, it brings installers a more economical solution with quicker installation and safer structure.

Material	AL 6005-T5/SUS304
Surface Treatment	Average Anodizing Coating Thickness≥ 12μm Average
Panel Type	Framed & Frameless
Wind Load	≤60m/s
Snow Load	1.4KN/m2
Panel Orientation	Landscape/Portrait
Tilt Angle	0°~60°
Seismic Load	Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
Standards	JIS C 8955 : 2017 AS/NZS 1170 DIN1055 ASCE/SEI 7-05 International Building Code: IBC 2009
Warranty	15years quality warranty, 25years life span warranty

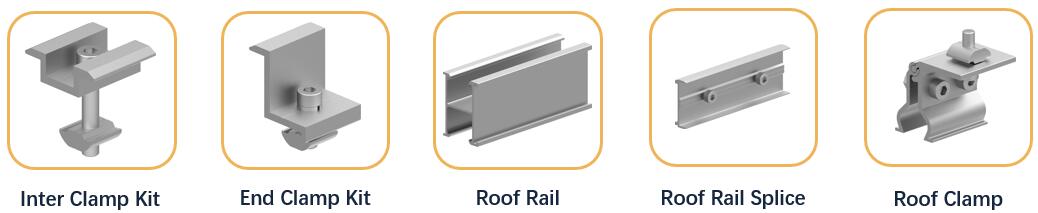

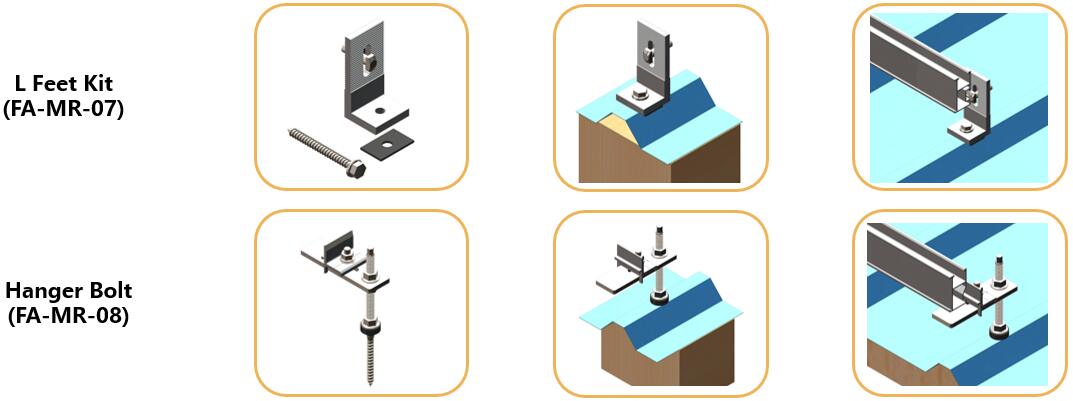

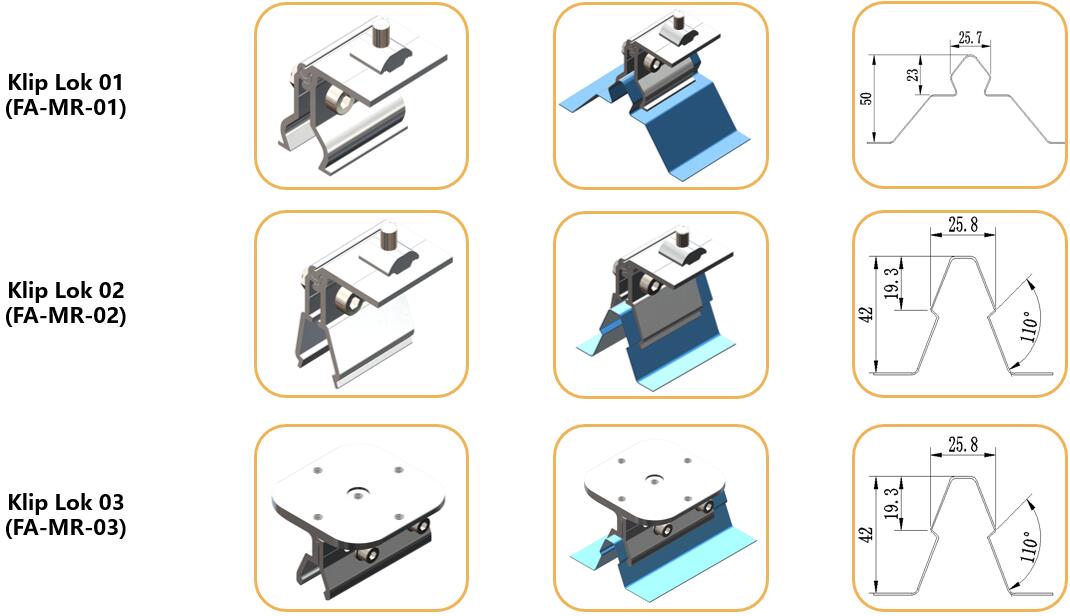

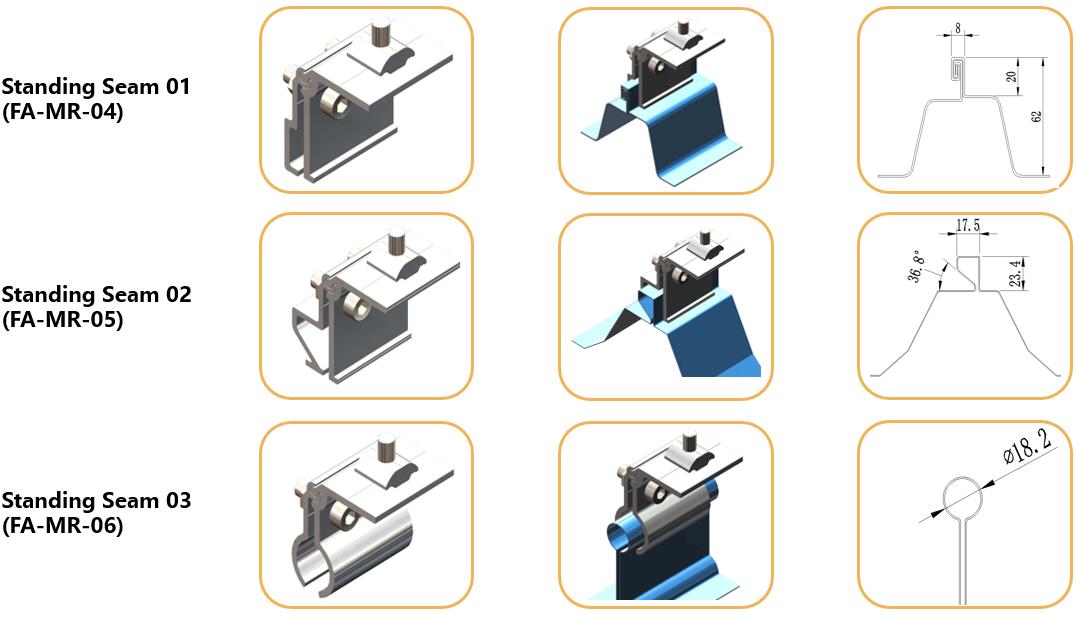

Component List

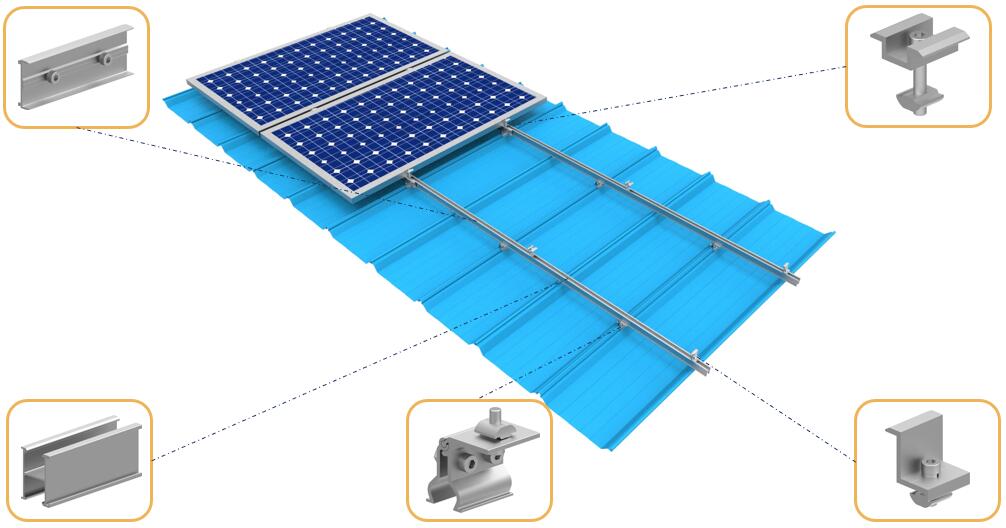

System Overview

Advantages

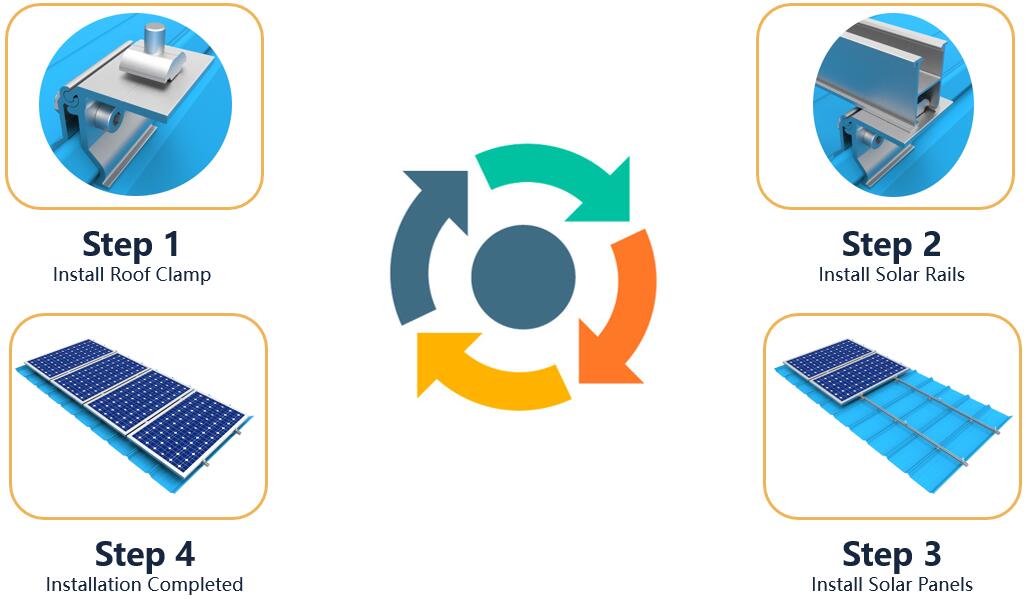

1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work

2. Safety & Reliability: Check and test Structure strictly for the use in extreme weather condition

3. Lower Cost : Simpler design and less components make the solution more competitive

4. 15 Years Warranty: 15 years' warranty, 25 years' life span

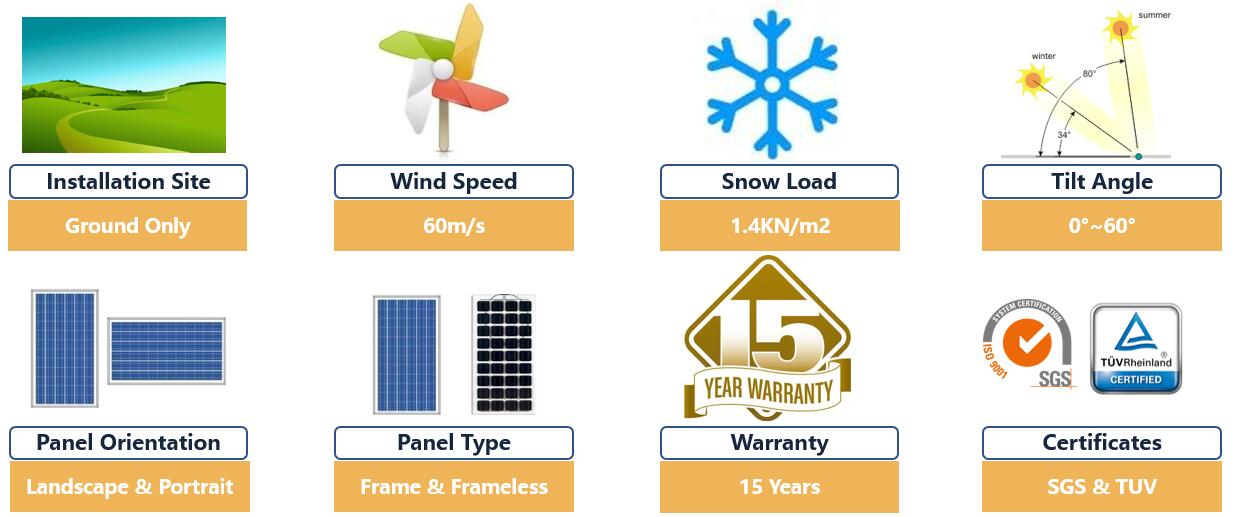

   Framed & Frameless
Wind Load
   ≤60m/sSnow Load
   1.4KN/m2
Panel Orientation
   Landscape/Portrait
Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1; seismic coefficient: Z=1; Use coefficient: I=1
Standards

JIS C 8955 : 2017

AS/NZS 1170

DIN1055

ASCE/SEI 7-05

International Building Code: IBC 2009

Warranty

15years quality warranty, 25years life span warranty
