Roof Mount Solar Racking

Tile Rooftop Solar Mounting Structure

Tile Rooftop Solar Mounting Structure is specially developed for both residential and commercial rooftop solar installations.

  • Item No.:

    FA-PR-01

  • Product origin:

    Fujian,China

  • Color:

    As your demand

  • Shipping port:

    Jiangyin Port

  • Lead Time:

    15 days

  • Brand:

    FOEN

Product Categories

how can we help you
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Contact Us

New Products

  • Product Details

Tile Rooftop Solar Mounting Structure


Material
    AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
    Framed & Frameless
Wind Load
    ≤60m/s
Snow Load
    1.4KN/m2
 Panel Orientation
    Landscape/Portrait
 Tilt Angle
    0°~60°
Seismic Load
    Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

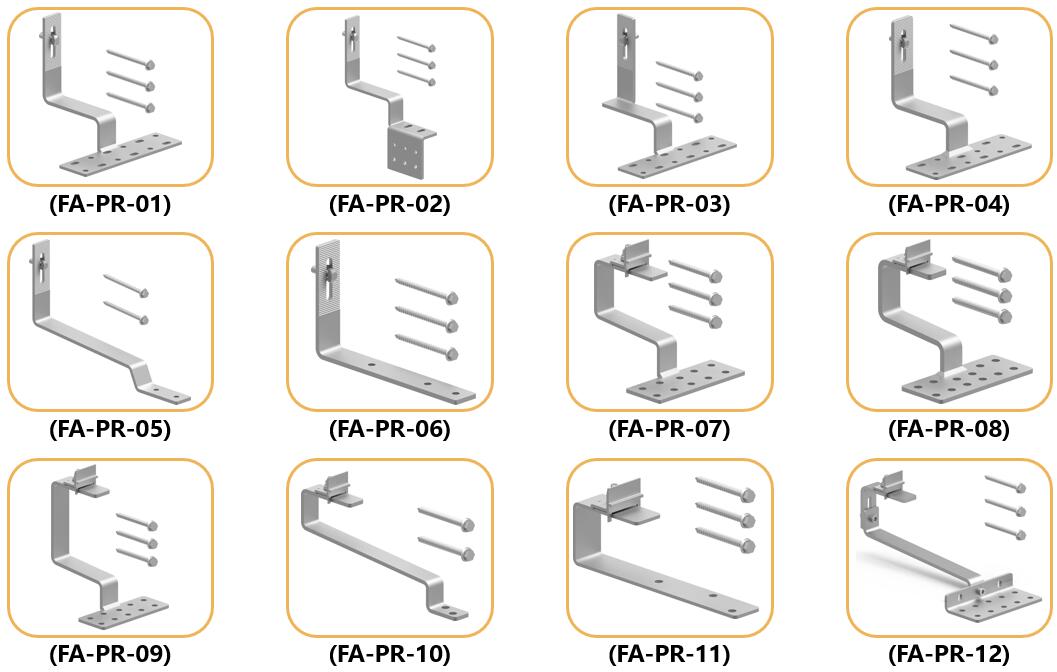

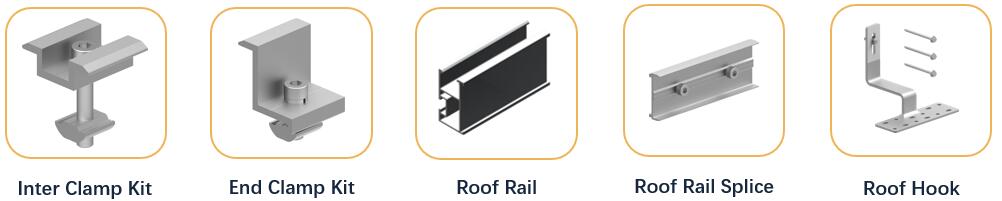

 Component List

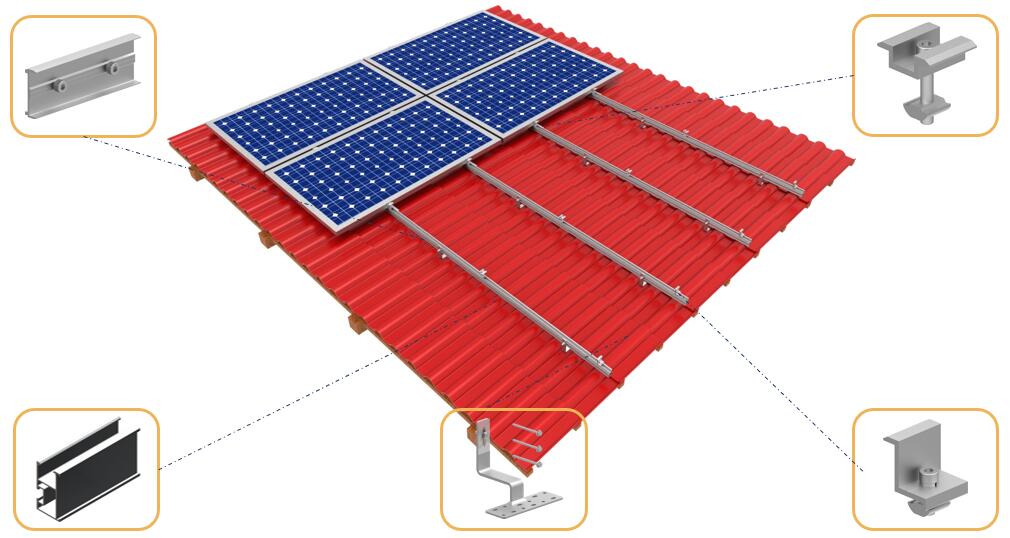

System Overview



 Advantages

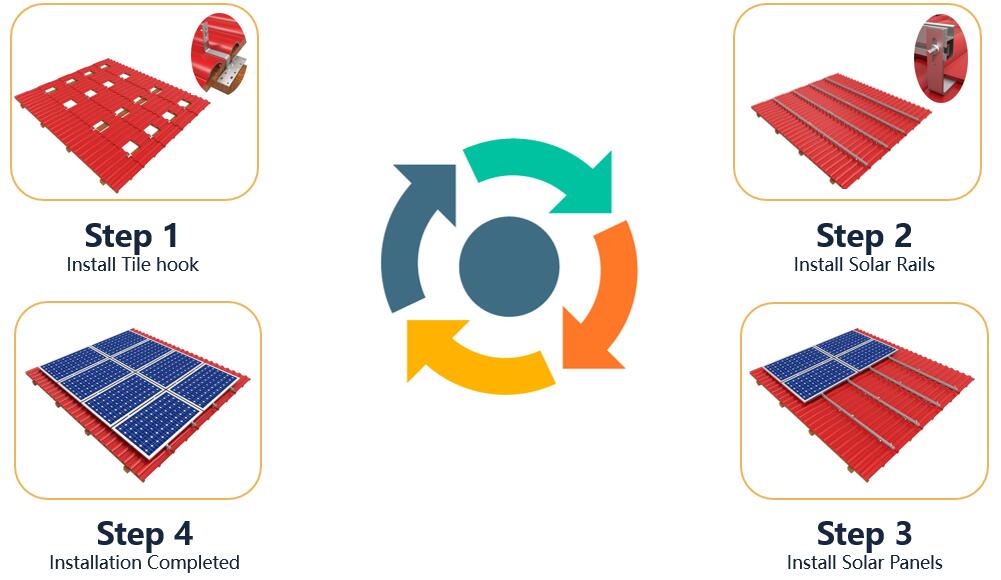

1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work

2. Safety & Reliability:  Check and test Structure strictly for the use in extreme weather condition


3. Lower Cost : Simpler design and less components make the solution more competitive


4. 15 Years Warranty: 15 years' warranty, 25 years' life span



Hot Tags : Adjustable Tile Angle Roof Mount Tile Brackets Solar Roof Mount
